Air Sentry L-Series Desiccant Breathers

Air Sentry L-Series in-line filter/dryers remove water vapor and solid particles down to 2 microns from air exhaust lines, vacuum lines, and low-pressure compressed air lines. Filled with 100% silica gel and rated up to 60 psi, they deliver clean, dry air wherever your process depends on it.

4 products

Air Sentry L-Series In-Line Filter Dryers: Features & Model Guide

How the L-Series Works

Unlike standard desiccant breathers that mount on top of a tank or reservoir, L-Series units install directly in an air line. Air enters one end of the filter/dryer, passes through the silica gel desiccant and filtration media, and exits the other end clean and dry. Water vapor is adsorbed by the desiccant, and solid contaminants down to 2 microns are filtered out.

That makes the L-Series a simple, compact way to protect equipment and processes that need clean, dry air, without a large or complex drying system.

Key Features

  • In-line design that fits directly into air exhaust, vacuum, and low-pressure air lines.
  • 100% silica gel desiccant for moisture adsorption.
  • 2-micron solid particle filtration to remove fine dust and debris.
  • Rated up to 60 psi. Install on the regulated side of the air line.
  • 1/2" FNPT connections on all models.

Common Applications

  • Air exhaust lines
  • Vacuum lines
  • Low-pressure compressed air lines
  • Marine vehicles

Need to protect a tank, reservoir, or gearbox vent instead? See our D-Series desiccant breathers for stationary equipment, or browse the full range of Air Sentry desiccant breathers.

L-Series Model Guide

The L-Series comes in two diameters and two lengths, all with 1/2" FNPT connections:

  • L-141: 2" dia. x 5" long, 1/2" FNPT
  • L-142: 2" dia. x 8" long, 1/2" FNPT

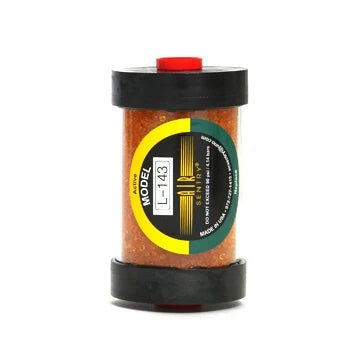

  • L-143: 3.25" dia. x 5" long, 1/2" FNPT
  • L-144: 3.25" dia. x 8" long, 1/2" FNPT

Larger units hold more desiccant, so they last longer between replacements. They're a good fit for higher airflow, humid environments, or continuous-duty lines.

Important Installation Note

L-Series filter/dryers are rated up to 60 psi. Always install them downstream of the pressure regulator, on the regulated side of the line, to stay within the rated pressure.

Need Help Choosing?

Not sure which L-Series model fits your air line, or need pricing for multiple units? Our team can help you select the right filter/dryer and provide bulk quotes. Request a quote.
